e.Rota evaluation bench for full dimensional measurement of high precision tubing on ROTA25© (Nukem) inspection bench.
Dimensional measurement
High precision tube inspection
Our partner Provea (France) has developed an immersion tank for tube rotating technique. The system is using 4 channels for crack detection, and 1 channel for wall thickness.
The tube dimension is going from 12 to 50mm with a productivity of 9 meters per minute.
Reference : Sandvik

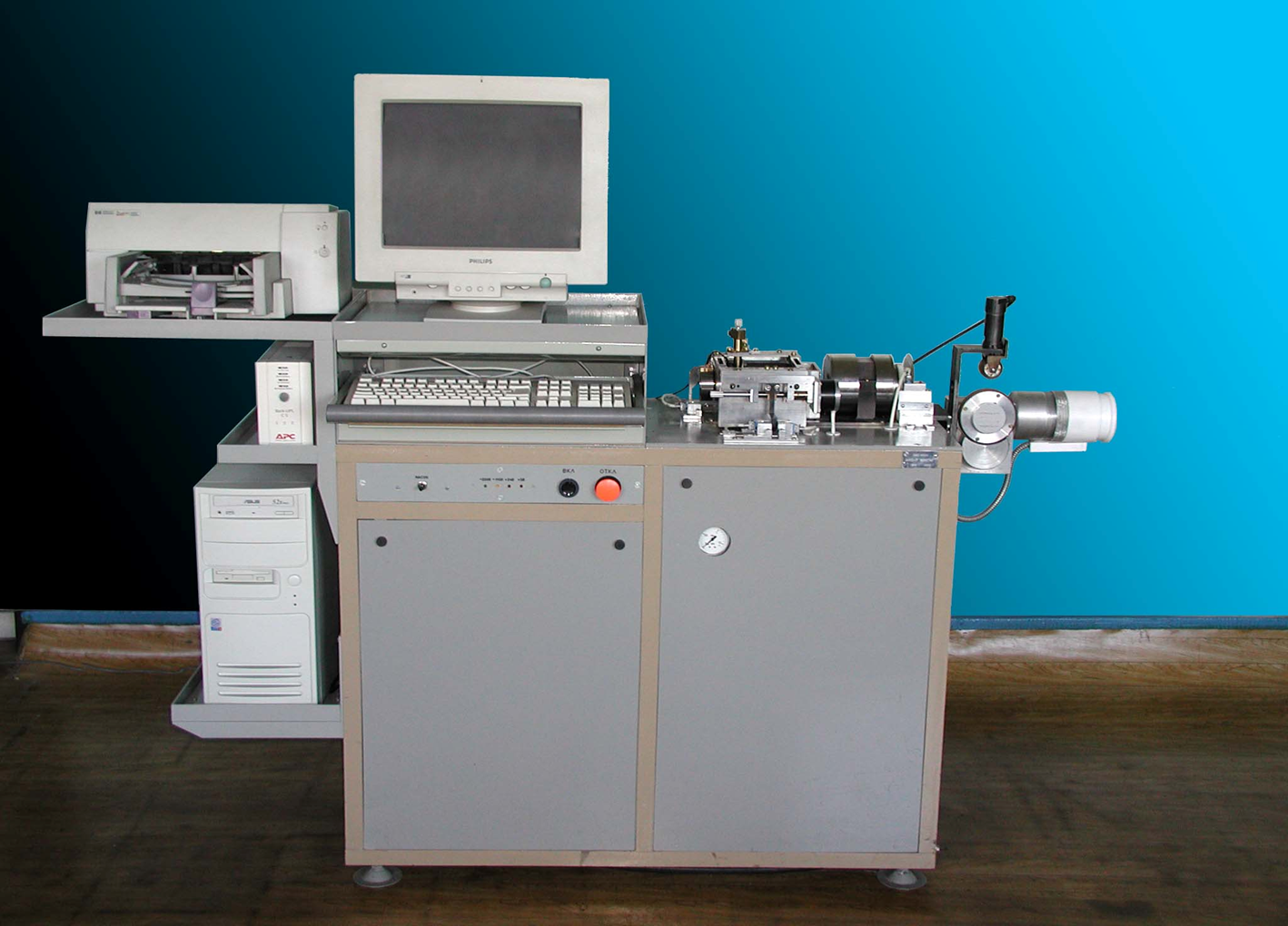

Nuclear fuel element 1
System for the UT inspection of fuel element cap weld.
Reference: NCCP

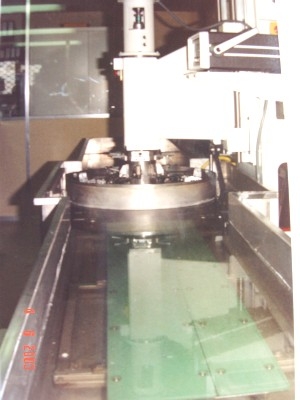

Nuclear fuel element 2
Fast automated UT testing system of disbondings in Al – UR – Al sandwiches using 6 rotating probes.
Reference : Cerca

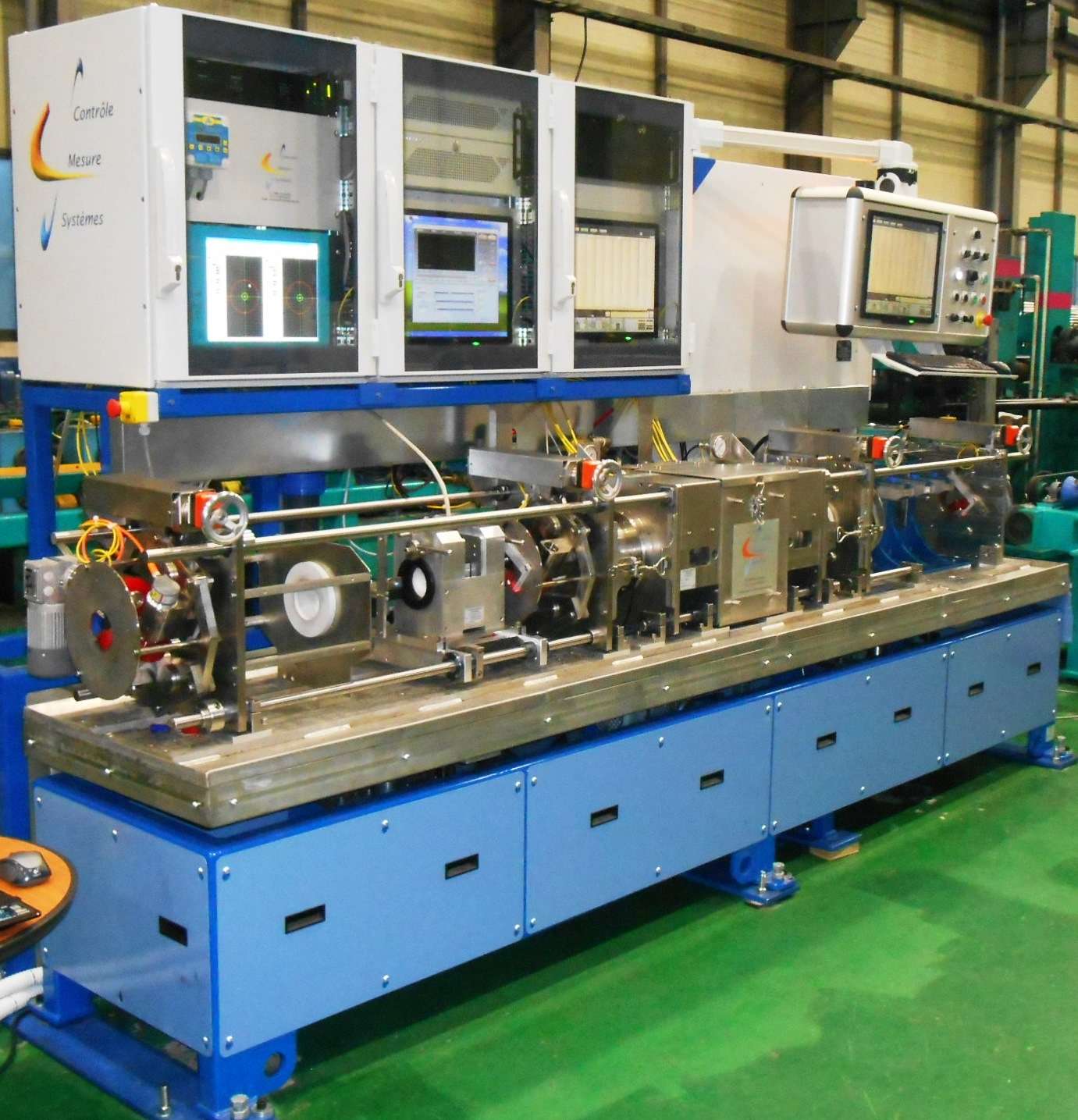

Rotary head with T.Rota
Our partner CMS has integrated into one of its rotary head our T.Rota system for Flaw detection and Dimensional measurement.
Defect size : Minimum of 0.38mm long and 5% or 10% deep with a minimum of 0.03mm.

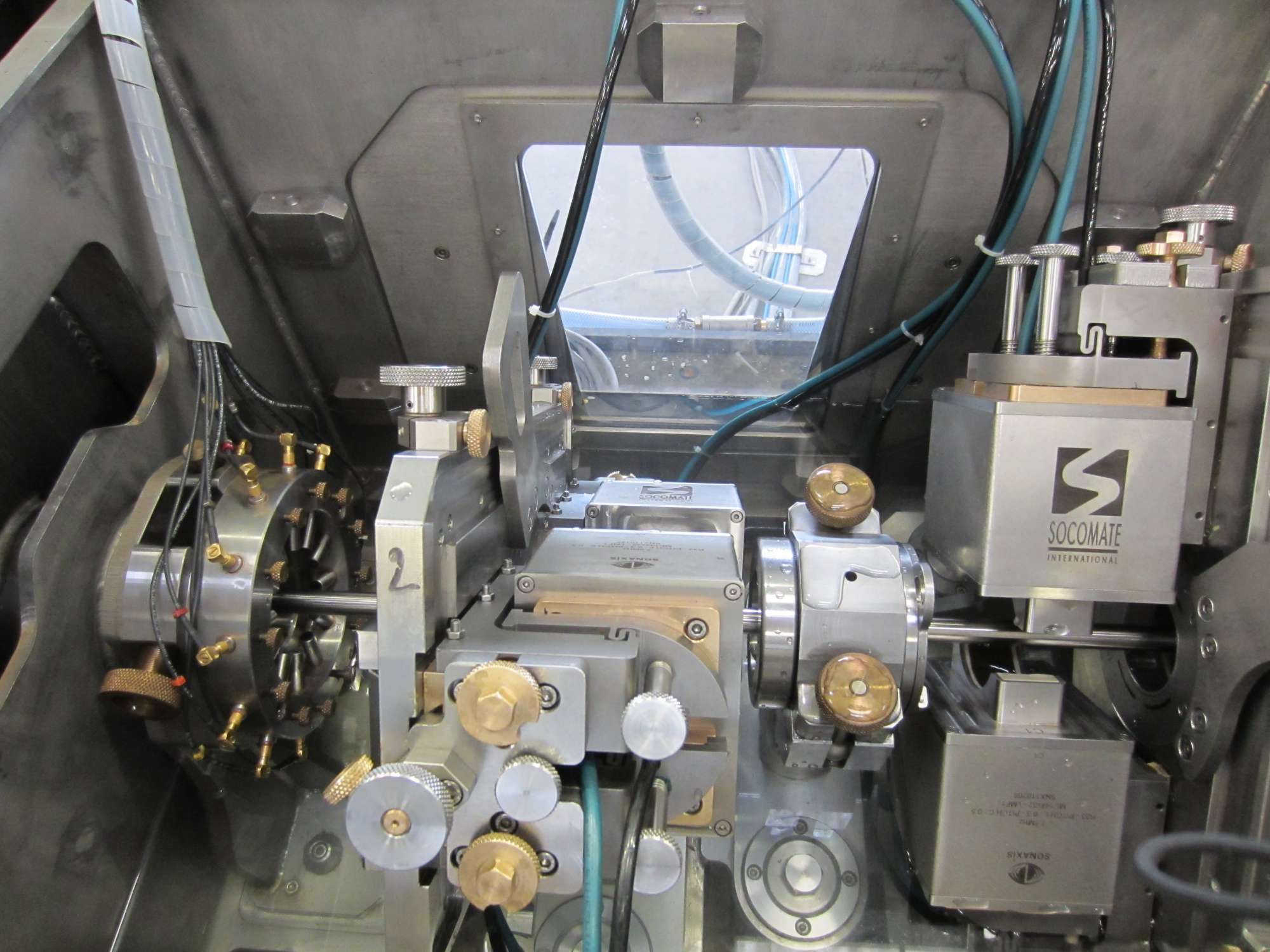

T.Rota flaw detection and dimensional measurement
T.Rota for Flaw detection and Dimensional measurement on Nukem rotary head (ROTA25©).
Reference : Valinox

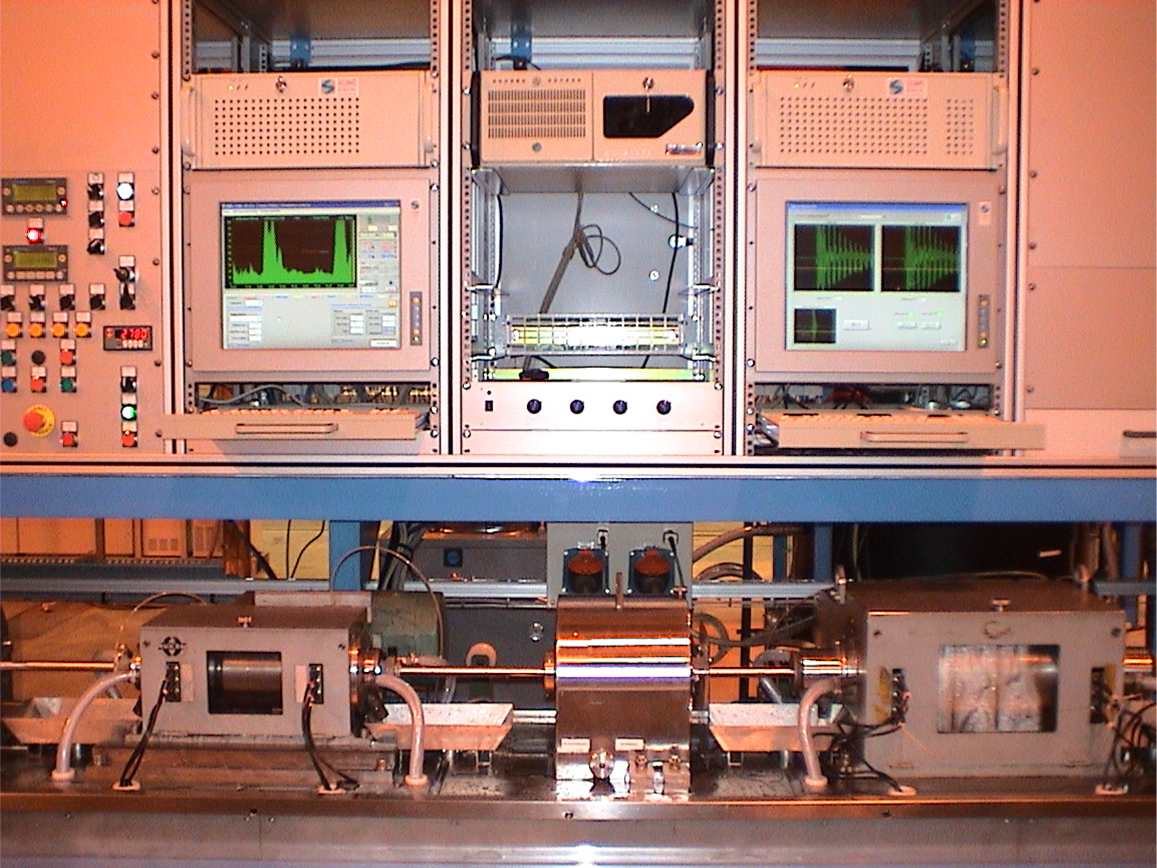

Umbilical tubing inspection
e.Rota system combined with our FAAST Technology is an alternative to rotary head for Flaw detection and Dimensional measurement of high precision tubes.
The Flaw detection is performed with our patented FAAST Phased Array technology, and the Dimensional measurement with our patented e.Rota system. For more information, please consult our e.Rota and FAAST documentation.
Reference : Vallourec Umbilicals
